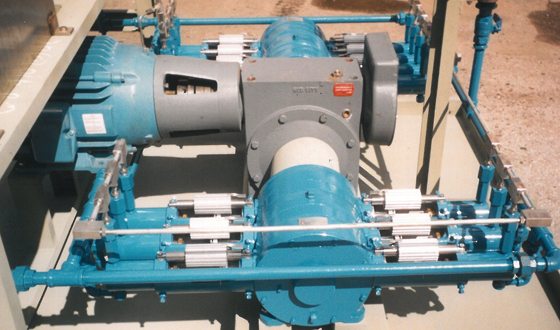

McFarland-Tritan, LLC Electric or Engine Driven Pumps are engineered for long low maintenance service. Fluid ends are manually adjustable while running. Fluid ends can be "stacked" into multiplex units to increase discharge volume. Designed for high-pressure chemical injection and hydrostatic testing applications. The Mac P-15 max stroke length is 1½" while its cycles/minare adjustable to 175, with a 10:1 reducer, and its maximum plunger size is 2". Mac P-15 standard equipment includes a base plate, intake/discharge check valves and "adjustable while running" stroke adjustment. Optionally, you can get a fluid end of 316 SS, packing for application and stainless steel manifolding, depending upon your corrosion requirements.
|
| Plunger Size (in.) |
Number of Heads |
Volume - Gallons |
Maximum Discharge Pressure |
Speed Strokes/Minute |
| Min. |
Hr. |
Day |
| 1/4 |
1
3
6 |
.050
.151
.301 |
3.01
9.03
18.07 |
72
217
434 |
30,000
30,000
30,000 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 3/8 |
1
3
6 |
.113
.339
.677 |
6.77
20.32
40.64 |
163
488
975 |
13,500
13,500
13,500 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 1/2 |
1
3
6 |
.200
.602
1.205 |
12.05
36.15
72.30 |
289
867
1,735 |
7,500
7,500
7,500 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 5/8 |
1
3
6 |
.314
.941
1.883 |
18.83
56.49
112.98 |
452
1,355
2,710 |
5,000
5,000
5,000 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 3/4 |
1
3
6 |
.452
1.355
2.702 |
27.11
81.33
162.66 |
650
1,952
3,903 |
3,500
3,500
3,500 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 1Â |
1
3
6 |
.803
2.409
4.819 |
48.19
144.57
289.14 |
1,157
3,470
6,940 |
2,000
2,000
2,000 |
175 (10:1)
175 (10:1)
175 (10:1) |
| Â 1 1/4 |
1
3
6 |
.1255
3.765
7.530 |
75.30
225.90
451.80 |
1.807
5.421
10.824 |
1,200
1,200
1,200 |
175 (10:1)
175 (10:1)
175 (10:1) |
| Â 1 1/2 |
1
3
6 |
1.807
5.421
10.842 |
108.40
325.20
650.40 |
2,603
7,809
15,618 |
800
800
800 |
175 (10:1)
175 (10:1)
175 (10:1) |
| 2Â |
1
3
6 |
3.213
9.639
19.278 |
192.80
578.40
1,156.80 |
4,627
13,881
27,762 |
500
500
500 |
175 (10:1)
175 (10:1)
175 (10:1) |
|
Volume based on 90% theoretical maximum.
For pumps with two ends, volume is double shown for one end.
Using a 20:1 reducer, volume is half what is shown
Pressure shown in maximum for each type pump.
