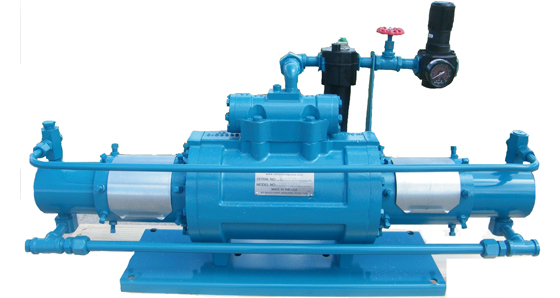

Mac 26

This hydrostatic test pump is engineered for both hydrostatic testing and high-pressure chemical injection applications, the Mac-26 weighs in at 175 lbs. The hydrostatic test pump is designed using power piston size 6", stroke length of 2", cycles/minute adjustable to 100, max input pressure at 100 psi, and a power gas max cons of 51 SCFM. The Mac-26's temperature limits are from -20 to 140F. Materials chosen for maximum corrosion resistance. This reciprocating pump has reduced components for easy maintenance. Positive displacement, stroke rate adjustment for accuracy.
Optional single head simplex


Plunger Size (in.) Volume - Gallons @ 100 cpm Operating Pressure Stall Pressure
Min. Hr. Day @ 100 psi Input
1/4 .08 4.62 111 39.177 47,572
5/16 .12 7.20 173 25,080 30,454
3/8 .17 10.32 248 17,424 21,157
1/2 .31 18.36 441 9,799 11,899
5/8 .48 26.68 689 6,270 7,613
3/4 .69 41.34 992 4,354 5,287
1 1.22 73.44 1,763 2,449 2,974
1 1/4 1.91 144.70 2,753 1,568 1,904
1 1/2 2.75 165.20 3,966 1,089 1,322
1 3/4 3.75 224.90 5,397 800 972
2 4.90 293.80 7,052 613 744



Volume based on 90% theoretical maximum.
Stall pressure based on 85% efficiency.
Gas consumption @ 100 psi and 100 cpm = 51 SCFM.
